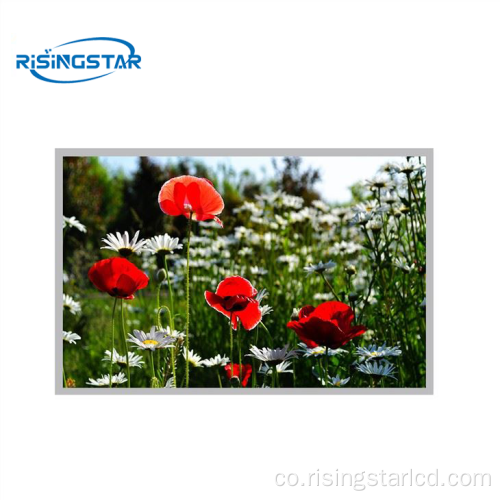

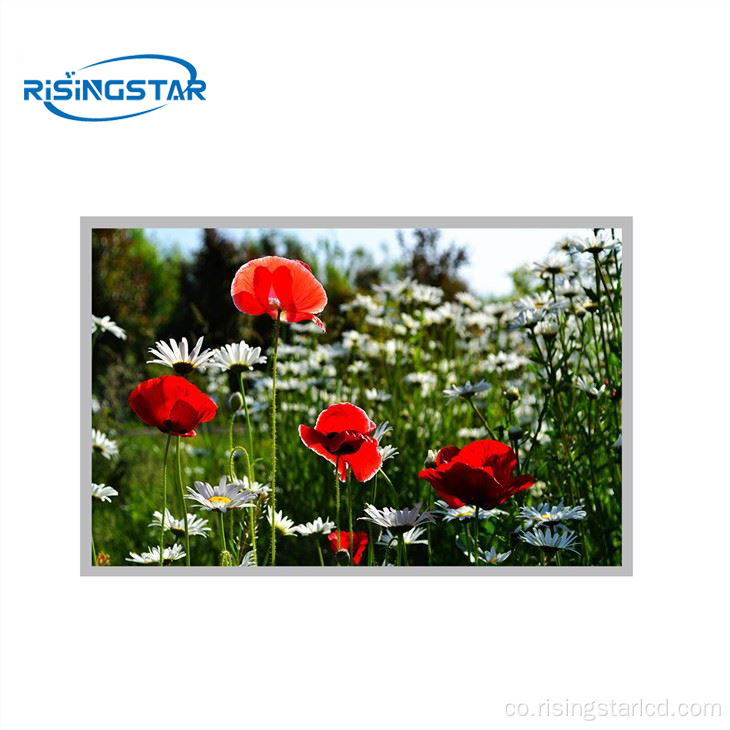

| Panel Brand | RISINGSTAR | Panel Model | RS156ENT-NE10 |
| Panel Size | 15.6" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 [FHD] 141PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(H)×193.59(V) mm | Surface | Antiglare, Hard coating (3H) |
| Outline Size | 370(H)×217(V) ×9.8(D) mm | Contrast Ratio | 800:1 (Typ.) (TM) |
| Brightness | 1000nit or customized | Display Mode | TN, Normally White, Transmissive |
| Viewing Angle | 80/80/80/65 (Typ.)(CR≥10) | Response Time | 30(Tr/Td) |
| Display Colors | 16.7M 76% NTSC | Lamp Type | WLED [12S4P] , 50K hours , With LED Driver |
| Frequency | 60Hz | Input Voltage | 3.3V (Typ.) |
| Weight | 950g (Max.) | Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Environment | Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C | ||
1.Professional all'aperto alta di u fabricatore di panel di LCD LCD
2.Professional High Brightness LCD, pò resistisce 110 temperatura alta
Minten 3.Samesung, LG, Beo, AUSO, Innolude Cooperative Cooperate
4.Per vi furnisce una guida di a tecnulugia di a tecnulugia di tecnulugia prufessiunale
Tags hot: 15.6 inch 1000nit extturesta LCD esterna, Cina, fattoria, Consente, COSTTURA, DOWNY REMOKS, all'aperto Ips PANEL, 10 TFT LCD PANEL, 10 1 TFT LCD PANEL, TFT più brillanti LCD , Pannellu LCD, u modulu LCD, mostra alta luminosità.
15.6 Inch 1000nit u screnu di Putenza Digitale di Digital
15 "1000nit pannellu di visualizazione esterno
